Modular Test Systems

PIPE, FITTING, AND COMPONENT MODULAR TEST SYSTEMS

Mechanical Research & Design, Inc. provides Modular Pressure and Leak Test systems for manufactured pipes, fittings, valves and other component assemblies. Our typical clients include direct piping and fitting manufacturers; mechanical contractors and piping system weld shops; construction site piping assembly and installations; industrial fabrication plants; energy production plants; and many more locations around the world. We have standard and highly customized, application-specific Modular Test Solutions, where the goal is often to provide as much flexibility for size range, length, and pressure into a single base test module package with economical, simple add-ons to cover more range. Ultimately, our customers save money over the life of their product validation activities as we make it easier to expand testing to new sizes without investing in additional test equipment.   Our modular test systems take less time to re-tool for changes due to variability in manufacturing, while also providing a single test core that is inherently safe for deployment in many configurations.

We specialize in providing discrete product solutions for many types of isolation and testing activities in industries including: Up and Downstream Oil & Gas, Nuclear Power and Processing, Defense, and Underwater Construction, where reliability, extended life, and consistency are required. Our Modular Test Systems integrate these same tools and MRD commitments into turnkey solutions used on a much broader scale. Mechanical Research & Design, Inc. engineers are trained in electrical, hydraulic, and pneumatic control systems as well as human factors engineering to provide the functional, safe validation tools your shop or project needs.

As with our other projects, size, pressure, shape, materials of construction, and scope are practically unlimited. At Mechanical Research & Design, we design and fabricate most, if not all of the components we use on every job, and where procurement is required, our vendors must also meet our strict quality standards. Our advantage is that we can vulcanize and manufacture our SEALFAST® Elastomers (Inflatable and Mechanical Seals) in-house, and have been doing so for decades. We learn what our products can do before they end up on your products. Another added benefit is turn-around — we can construct seals to nearly any shape or size in rapid timeframes, allowing us to provide you solutions that we know will work.

In addition to designing, manufacturing, and testing our product solutions in-house, we also provide pressure/leak-testing services (at our test Lab at Mechanical Research & Design, Inc.) for your manufactured products. Call us today to speak with an experienced product engineer and we will help you get the right solution the first time! See some of our common Modular Test Systems below.

Have Specific Requirements?

We specialize in custom solutions! Take a look at a few of our proven custom solutions or let us know your requirements. Our engineers and production staff are equipped to travel around the world at a moment’s notice to assist you with your needs!

Let's Talk!

Contact us today to discuss our rates or to book an appointment with one of our engineers.

Mechanical Research & Design, Inc. | Innovation Redefined | Manitowoc Wi
PIPE TEST MACHINE, PIPE TEST MODULE, COMPONENT LEAK TESTER; PIPE TESTER; PIPE TEST STATION; FITTING TESTER; ELBOW TESTER; ELBOW PRESSURE TESTER; PIPE PRESSURE TESTER, BURST TESTER; SEALFAST® PRODUCTS; MECHANICAL RESEARCH & DESIGN, INC.

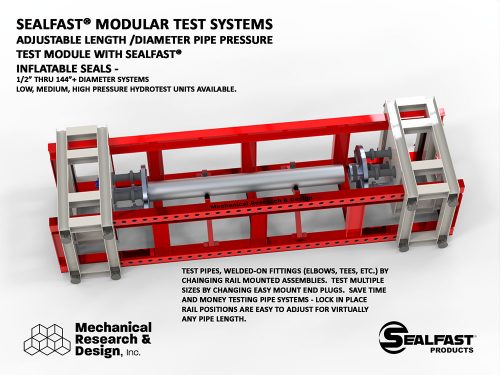

6" THRU 48" VARIABLE LENGTH PIPE TEST MACHINE, 2500 PSI
PVC PIPE TESTER; PVC PIPE PRESSURE TEST; PIPE TEST MODULE, COMPONENT LEAK TESTER; PIPE TESTER; PIPE TEST STATION; FITTING TESTER; ELBOW TESTER; ELBOW PRESSURE TESTER; PIPE PRESSURE TESTER, BURST TESTER; SEALFAST® PRODUCTS; MECHANICAL RESEARCH & DESIGN, INC.

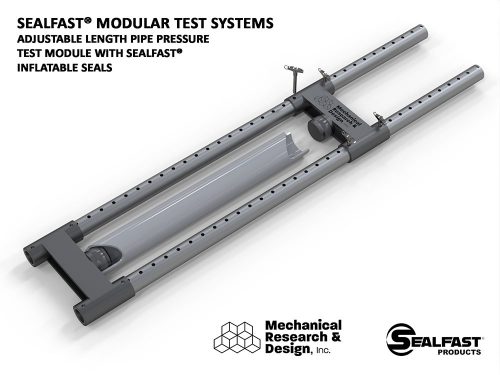

4" PVC VARIABLE LENGTH PIPE PRESSURE TEST MODULE
PVC PIPE PRESSURE TEST; PIPE TEST MODULE, COMPONENT LEAK TESTER; PIPE TESTER; PIPE TEST STATION; FITTING TESTER; ELBOW TESTER; ELBOW PRESSURE TESTER; PIPE PRESSURE TESTER, BURST TESTER; SEALFAST® PRODUCTS; MECHANICAL RESEARCH & DESIGN, INC.

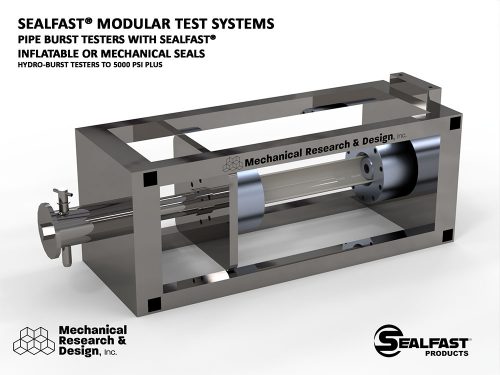

HYDRO-BURST TESTERS TO 5000 PSI PLUS
VALVE PRESSURE TESTER; VALVE TESTER; PIPE TEST MACHINE, PIPE TEST MODULE, COMPONENT LEAK TESTER; PIPE TESTER; PIPE TEST STATION; FITTING TESTER; ELBOW TESTER; ELBOW PRESSURE TESTER; PIPE PRESSURE TESTER, BURST TESTER; SEALFAST® PRODUCTS; MECHANICAL RESEARCH & DESIGN, INC.

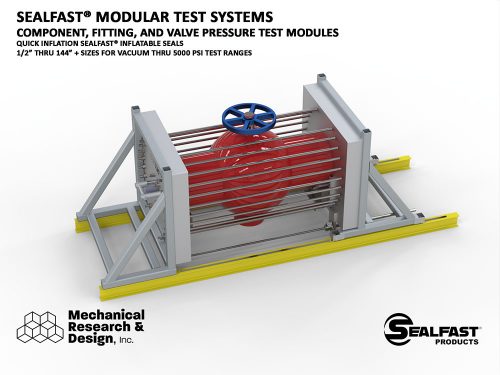

60" VALVE PRESSURE TEST MODULE

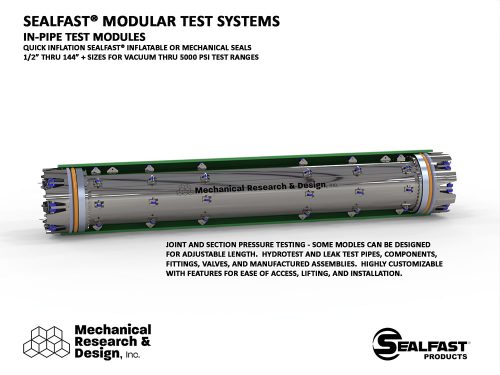

24" IN-PIPE PIPE PRESSURE AND LEAK TEST MODULE
24" IN-PIPE PIPE PRESSURE AND LEAK TEST MODULE
Mechanical Research & Design, Inc. | Innovation Redefined | Manitowoc Wi

MECHANICAL RESEARCH & DESIGN, INC. - IN-HOUSE TESTING SERVICES

TEE PRESSURE TESTER; PIPE TESTER; PVC PIPE PRESSURE TEST; PIPE TEST MODULE, COMPONENT LEAK TESTER; PIPE TEST STATION; FITTING TESTER; ELBOW TESTER; ELBOW PRESSURE TESTER; PIPE PRESSURE TESTER, BURST TESTER; SEALFAST® PRODUCTS; MECHANICAL RESEARCH & DESIGN, INC.

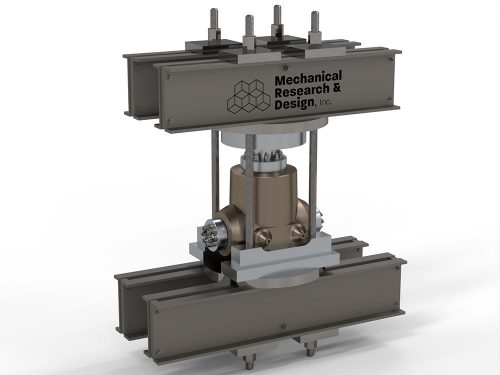

12" HIGH PRESSURE TEE, 5000 PSI PRESSURE TEST MODULE, TESTING PERFORMED IN-HOUSE AT MRD

We also provide in-house component pressure and leak testing services! Mechanical Research & Design, Inc. has fully staffed engineering, metals manufacturing & production, seal production, and testing departments on standby to help you fulfill your pressure testing and functional validation needs.
Call us today!


• For our other standard in-line pressure test plugs, isolation barriers, joint testers, and flange testers, please visit our General Isolation and Test Tools page.
Click here to see our standard and custom testers for industrial, automated, and shop floor leak testing.
Click here for general work assist, work positioning, and lifting tools.
• We also manufacture our SEALFAST® Mechanical and Inflatable Seals to just about every shape and size.
